Original Automotive High Voltage 3-phase Brushless DC Motor Driver SPF6102 6102 SOP-48 New Sanken

$7.00 Stocking
The SPF6102 is 3-phase Brushless Motor Driver IC. The IC is suitable for the applications which the maximum applied voltage to the motor is 150 V or less. The IC is driven by a bootstrap circuit, and the charge to this boost power supply (boot capacitor) is supplied from the internal auxiliary ...

The SPF6102 is 3-phase Brushless Motor Driver IC. The IC is suitable for the applications which the maximum applied voltage to the motor is 150 V or less.
The IC is driven by a bootstrap circuit, and the charge to this boost power supply (boot capacitor) is supplied from the internal auxiliary power supply. This auxiliary power supply is boosted by the internal charge pump circuit and supplies a stable voltage that does not depend on the automotive inherent battery variation to the gate drive circuit.
The IC uses the compact SMD package, HSOP48 with high thermal dissipation and provides high-density mounting. Since the IC has the various protection functions, it can drive 3-phase brushless motor with few external components

Features

  • ・AEC-Q100 Qualified
    ・Built-in Bootstrap Diode
    ・Built-in Auxiliary Power Supply (VREGx)
    ・Bare Lead Frame: Pb-free (RoHS compliant)
    ・Enable Function
       (All phases shutdown with EN = logic low)
    ・Fault Signal Output at Protect Circuit Activated
    ・Protections
       Simultaneous On-state Prevention
       VBB Pin Overvoltage Protection
       (VBB_OVP): Auto-restart
       Undervoltage Lockout
       - VBB Pin (VBB_UVLO): Auto-restart
       - VDD Pin (VDD_UVLO): Auto-restart
       - VREGx Pin (VREGx_UVLO): Auto-restart
       Thermal Shutdown (TSD)



  •
  •

Application

  • For driving DC brushless motor such as:
    ・Inverter
    ・Onboard Charger (OBC)
    ・Battery Management System (BMS)

Specifications

Output Current 0.015 A
Supply Voltage 35.00 V
Power Dissipation 3.57 W
Junction Temperature -40 to 150 ℃
Operating Ambient Temperature -40 to 105 ℃
Protection Function UVLO, OVP, TSD
Supports PWM Control NO
Output Power Device Pre-drive output

Block Diagram

Block Diagram

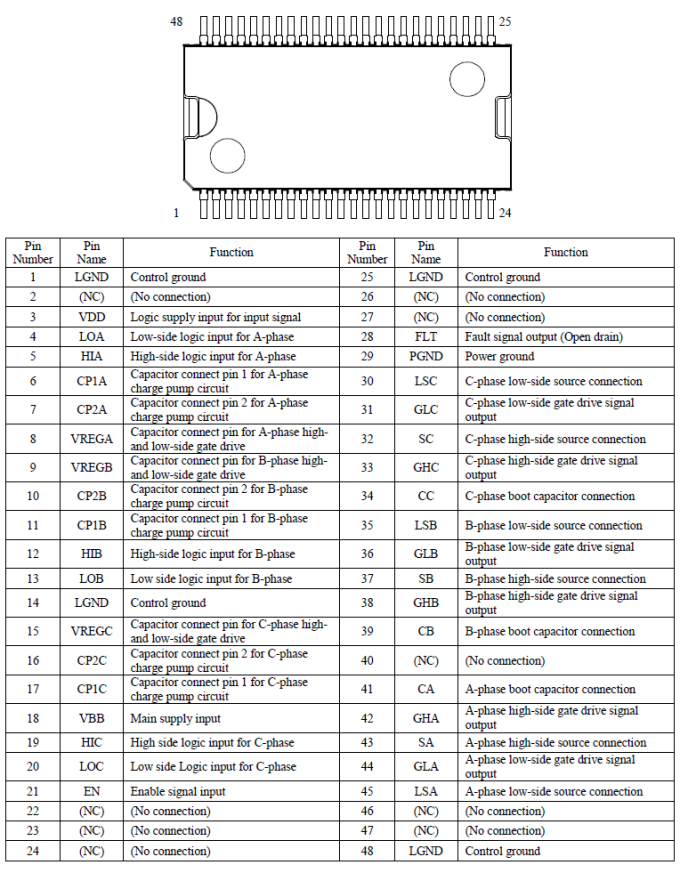

Pin Configuration Definitions

Pin Configuration Definitions
